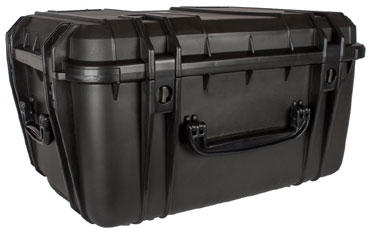

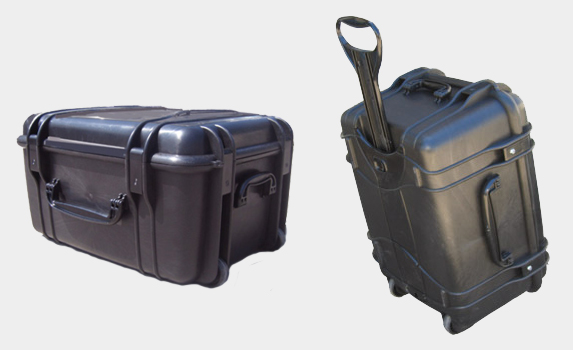

Seahorse SE-1220 Protective Case


Harness the strength and toughness of this case for your valuable equipment! Our SE Series cases are designed to provide top of the line protection at affordable prices. They survive! Available in a variety of colours and sizes, seahorse has a case just right for you. Seahorse cases satisfy US Military Specs and IP Standards 67. All Seahorse cases come with an UNCONDITIONAL LIFETIME GUARANTEE.



New Features

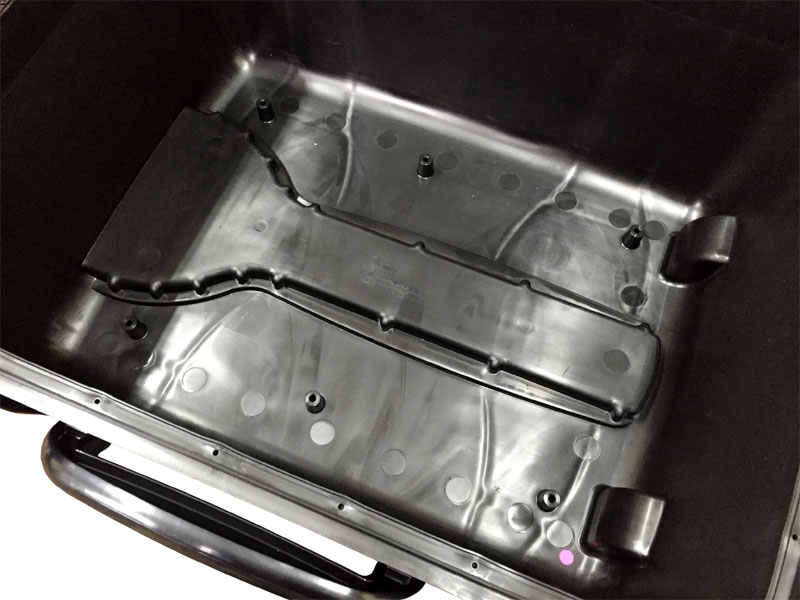

• Internal Mounting Bosses (located on the bottom only).
• Bosses use 1/4" self tapping screws.

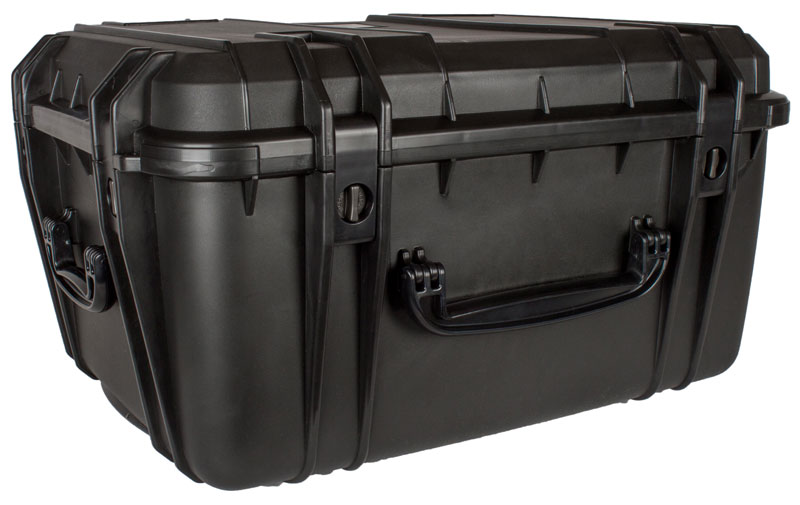

• More rugged and squarer external design.

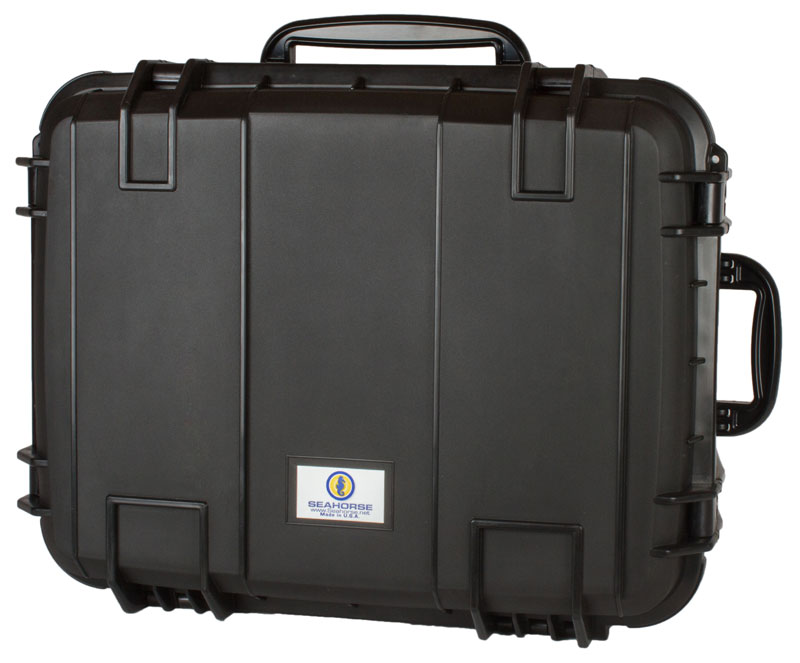

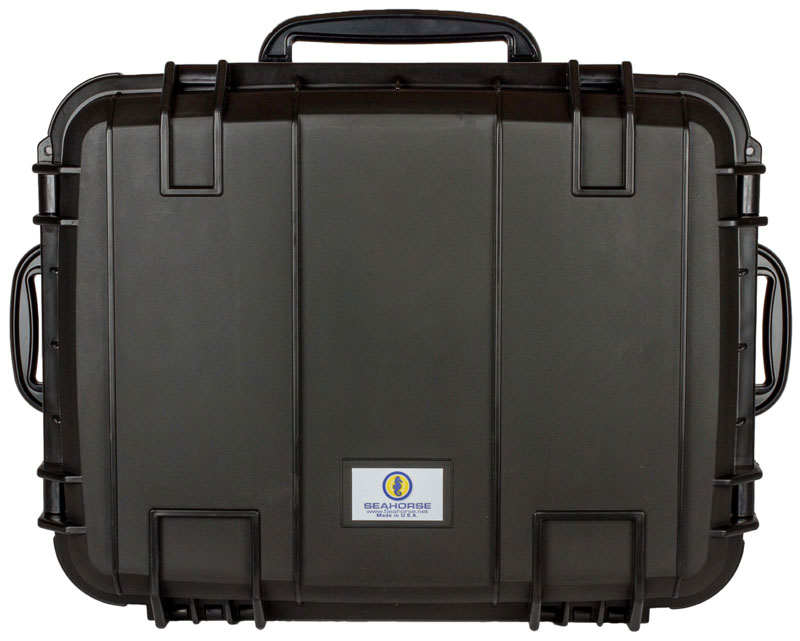

• Square label area on the lid.
• External height only increases by just 5mm.
• Internal dimensions remain the same.

Features
• Watertight, Airtight, Rustproof, Dustproof and Crush Resistant.
• Automatic pressure purge system.
• Built-in telescoping tote handle.
• Wide track wheels.
• O-Ring seal.
• Moulded-in padlock holes (fits standard size Masterlocksฎ).

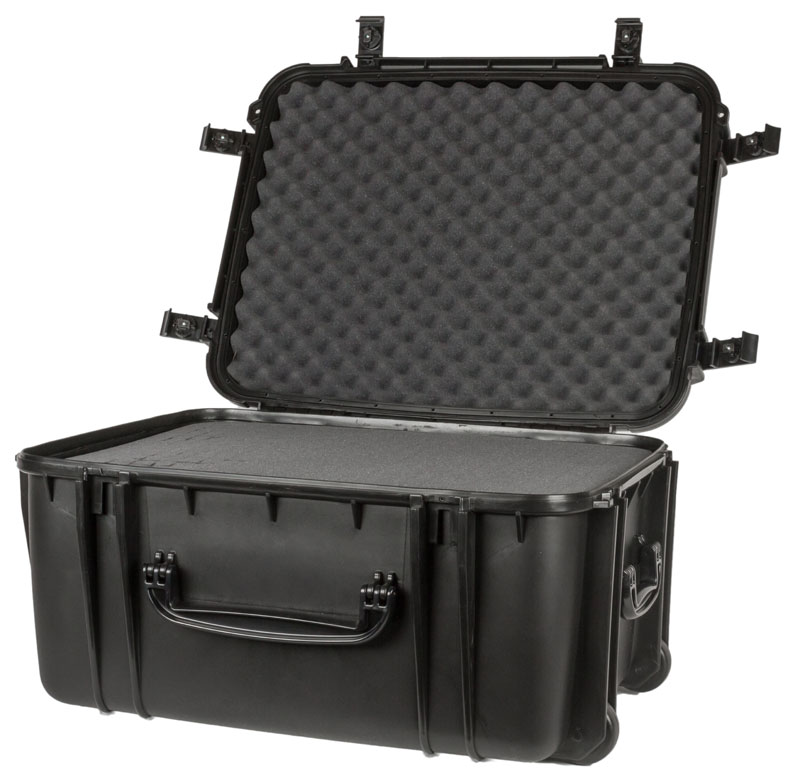

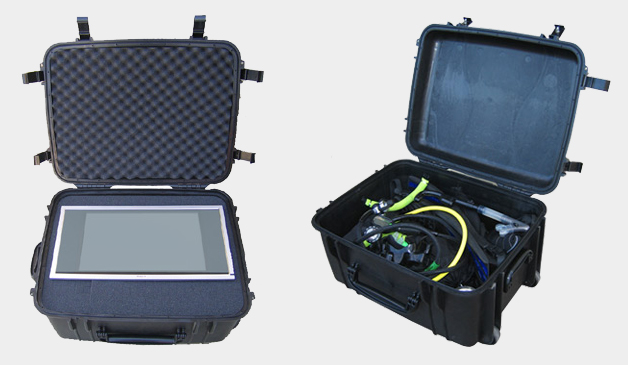

• Available with or without multilayer protective cubed matrix Accuform Foam.
• Also available with Seahorse Padded Divider Kit.
• Latches are available with keyed chrome metal locks or plastic non-corrosive locks.
• Chemical and UV resistant.
• Non-Magnetic without optional metal locks.
• All cases come with Seahorse's Unconditional Lifetime Guarantee.

For more detailed features click here.




Standard Seahorse Case Colours
  Black

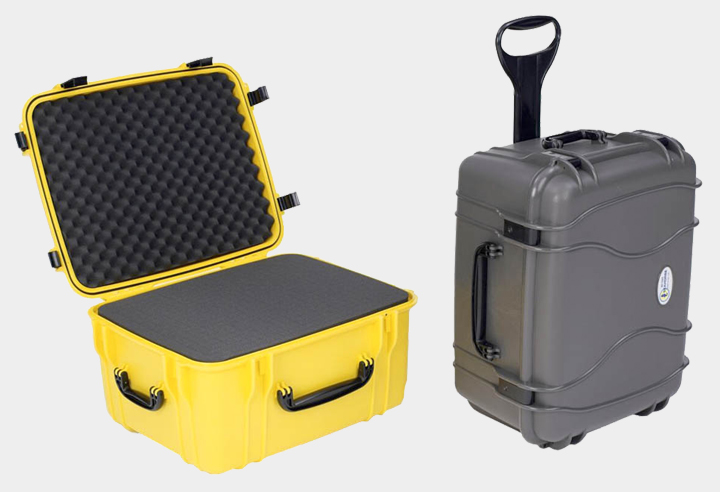

Other Available Case Colours
  Gun Metal Grey

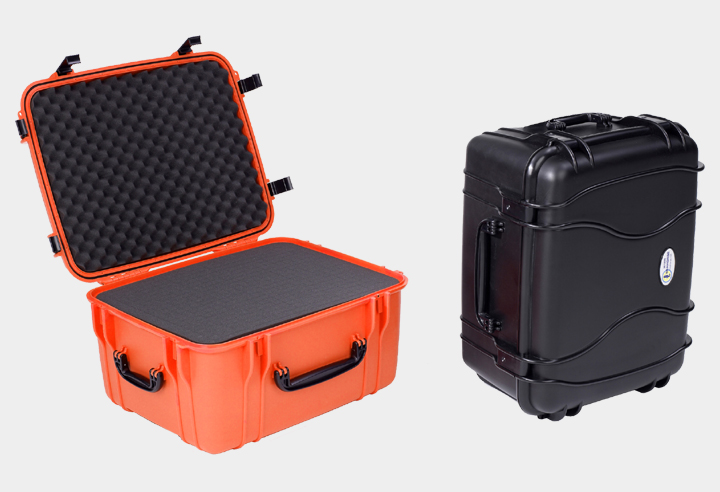

  International Orange (SOLAS)
  Safety Yellow (OSHA)

Custom Colours are also available.


Case Product Codes
•  SE-1220E - Empty
•  SE-1220F - With Foam
•  SE-1220D - With Dividers
 Dimensions and Weights


Length Width Depth
  Inside Dimension 25.7" 19.5" 13.1"
65.28 cm 49.53 cm 33.27 cm
  Outside Dimension 27.9" 22.3" 15.3"
70.86 cm 56.64 cm 38.86 cm


Case Weight
  SE-1220F (with foam) 27.05 lbs. 12.27 kg
  SE-1220E (without foam) 22.74 lbs. 10.31 kg
  SE-1220D (with divider) 30.00 lbs. 13.60 kg





  Certificates
  United States Department Of Defence
  Cage Code number 1XCY9.
  MIL-STD 810F 512.4 and Ingress
  Protection Codes 6,7.
 Schematics & Downloads

    Download the SE-1220 Schematic (.pdf) Here.

    Download the SE-1220 Schematic (.dwg) Here.

    Download the SE-1220 Schematic (Parasolid) Here.

   Download the SE-1220 Product Sheet (.pdf) Here.

   Download the SE-1220 Panel Kit Sheet (.pdf) Here.
