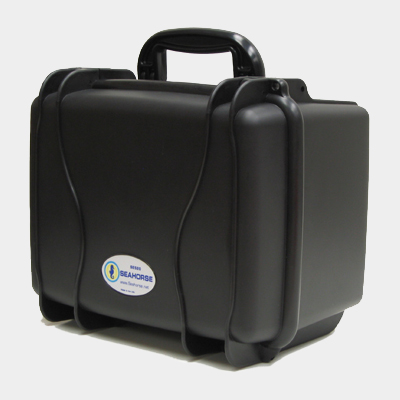

Seahorse SE-540 Protective Case

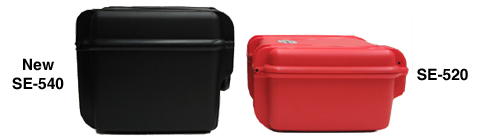

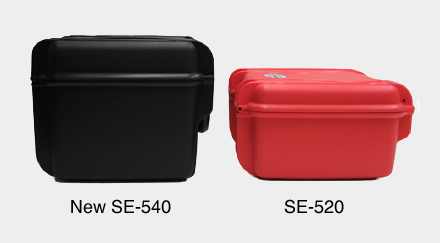

The new SE-540 has the same width and length as a SE-520 but deeper.




Harness the strength and toughness of this case for your valuable equipment! Our SE Series cases are designed to provide top of the line protection at affordable prices. They survive! Available in a variety of colours and sizes, seahorse has a case just right for you. Seahorse cases satisfy US Military Specs and IP Standards 67. All Seahorse cases come with an UNCONDITIONAL LIFETIME GUARANTEE.



New Features

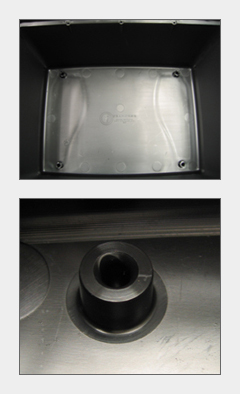

• Internal Mounting Bosses (located on the bottom only).
• Bosses use 1/4" self tapping screws.
• The SE-540 has holes moulded in the front fins to allow the detachable padded shoulder strap to hook into.

Features
• Watertight, Airtight, Rustproof, Dustproof and Crush Resistant.
• Automatic pressure purge system.
• O-Ring seal.
• Moulded-in padlock holes (fits standard size Masterlocksฎ).

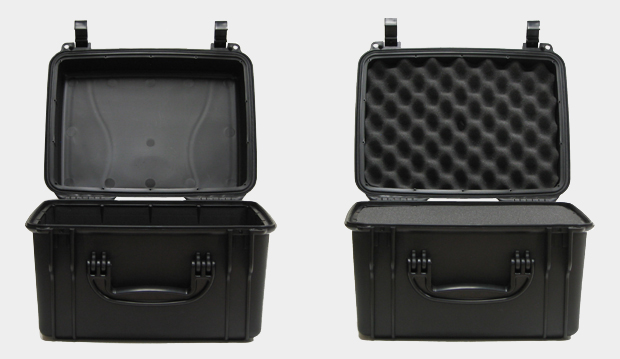

• Available with or without multilayer protective cubed matrix Accuform Foam.
• Also available with Seahorse Padded Divider Kit.
• Latches are available with keyed chrome metal locks or plastic non-corrosive locks.
• Chemical and UV resistant.
• Non-Magnetic without optional metal locks.
• This case will fit in overhead bin of most major airlines.
• All cases come with Seahorse's Unconditional Lifetime Guarantee.

For more detailed features click here.




Standard Seahorse Case Colours
  Black
  Safety Yellow (OSHA)


Other Available Case Colours
  Gun Metal Grey
  International Orange (SOLAS)

Custom Colours are also available.


Case Product Codes
•  SE-540E - Empty
•  SE-540F - With Foam
 Dimensions and Weights


Length Width Depth
  Inside Dimension 13.50" 9.80" 8.37"
34.29 cm 24.89 cm 21.25 cm
  Outside Dimension 14.95" 12.13" 9.58"
37.97 cm 30.81 cm 24.33 cm


Case Weight
  SE-540F (with foam) 6.47 lbs. 2.93 kg
  SE-540E (without foam) 5.66 lbs. 2.56 kg





  Certificates
  United States Department Of Defence
  Cage Code number 1XCY9.
  MIL-STD 810F 512.4 and Ingress
  Protection Codes 6,7.
 Schematics & Downloads

    Download the SE-540 Schematic (.pdf) Here.

    Download the SE-540 Schematic (.dwg) Here.

    Download the SE-540 Schematic (Parasolid) Here.

   Download the SE-540 Product Sheet (.pdf) Here.

   Download the SE-540 Panel Kit Sheet (.pdf) Here.
